SELF HELP

Alarm System Permit For City of Lethbridge Residents

The City of Lethbridge has had an Alarm System Bylaw in place since 2000. The purpose of the Lethbridge Alarm System Bylaw is to promote the responsible use of alarm systems by both companies and individuals. The intent of the bylaw is to reduce the number of false alarms that police attend. Lethbridge Bylaw No. 5078 requires all alarm system users to have a valid alarm system permit. Police may not attend your alarm if you do not have a valid alarm system permit.

**Alarm permits are only valid for The City of Lethbridge. LPS does not issue permits to addresses outside city limits – i.e. County of Lethbridge**

  1. There is no fee to apply for an alarm permit.
  2. Alarm permit numbers are not transferable from one address to another or from one owner to another. A change in address or owner will require a new application.
  3. The permit applicant must be the person responsible for the alarm system. If it is for a commercial property, a contact person is required.
  4. Secondary keyholders must not reside at the property where the permit has been issued. The keyholder must be able to attend within 30 minutes of being contacted.
  5. The permit will be renewed automatically every year unless cancelled.
  6. Return all completed applications to the Lethbridge Police Service.

To complete an application or submit a change/cancellation:

1. Download and fill out the applicable form below.
2. Choose one of the following submission options:
    a) Email the completed form to alarms@lethbridgepolice.ca
    b) Drop off the completed forms to the Lethbridge Police Service during business hours, visit lethbridgepolice.ca for updated business hours.
    c) Mail to: Alarm Registrations, Lethbridge Police Service, 135 – 1 Avenue South, Lethbridge, AB, T1J 0A1

Alarm System Registration

Alarm System Change/Cancellation

DIY Tips for Quick Fixes and Maintenance

Alarm Systems and Keypads

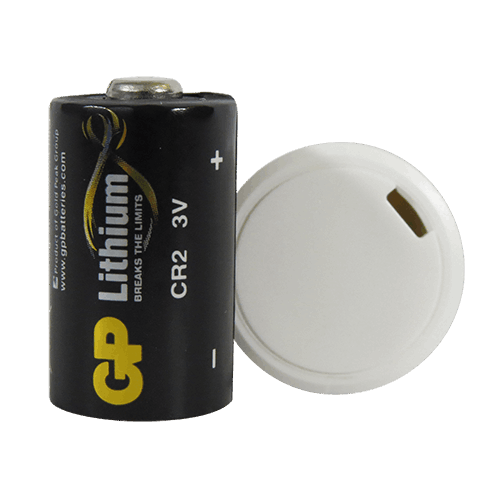

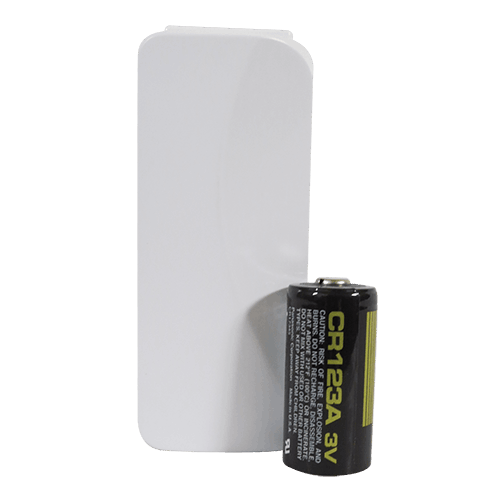

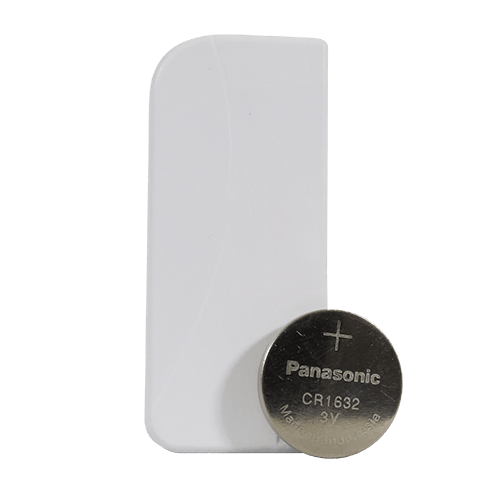

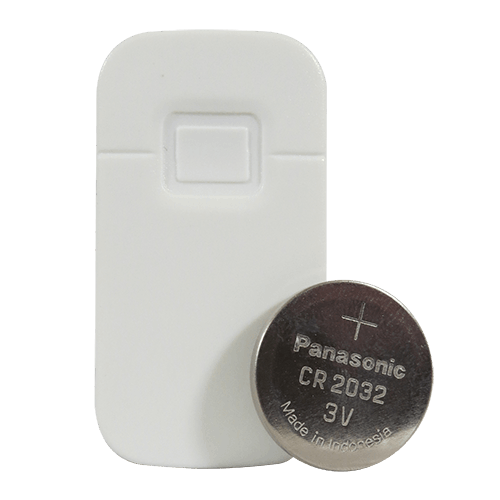

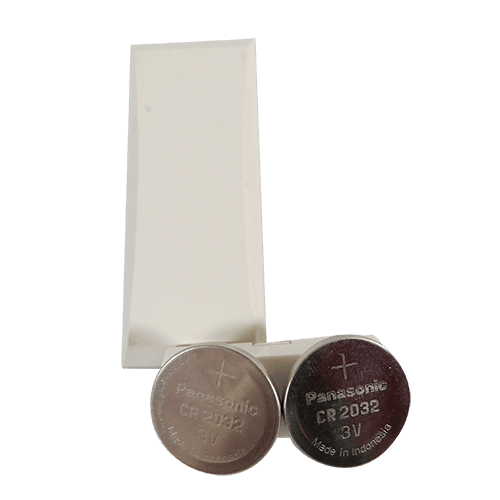

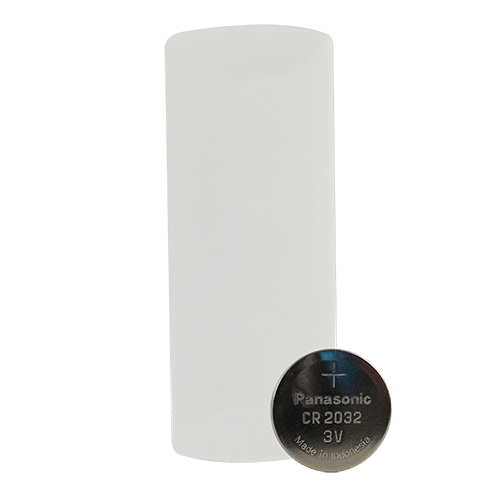

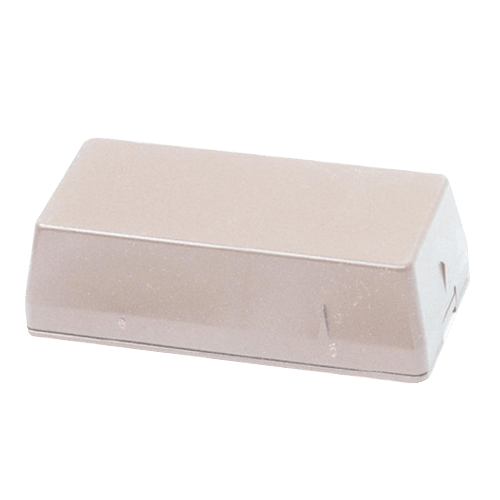

Door/Window Contacts

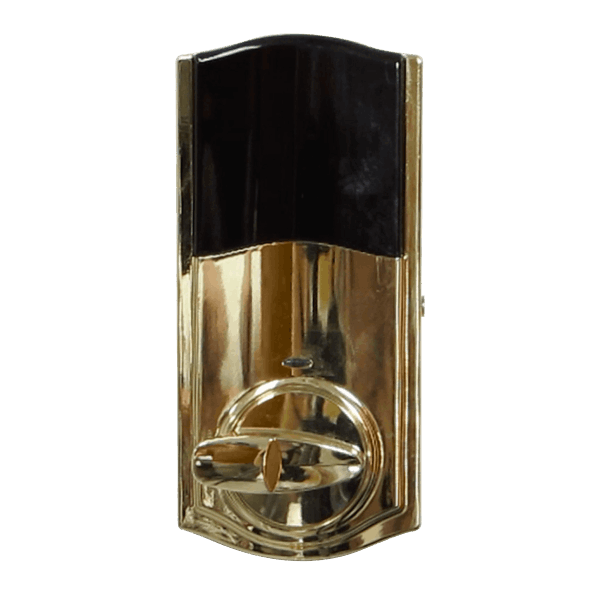

Home Automation

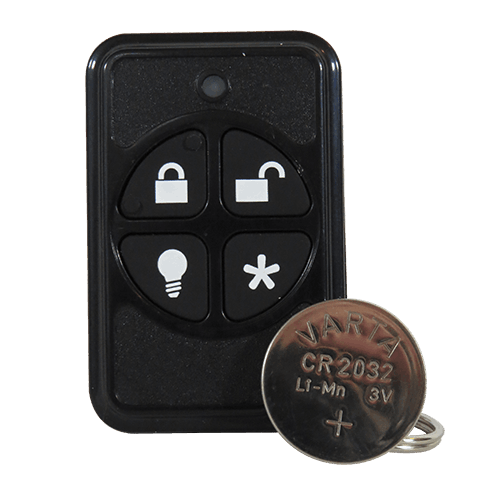

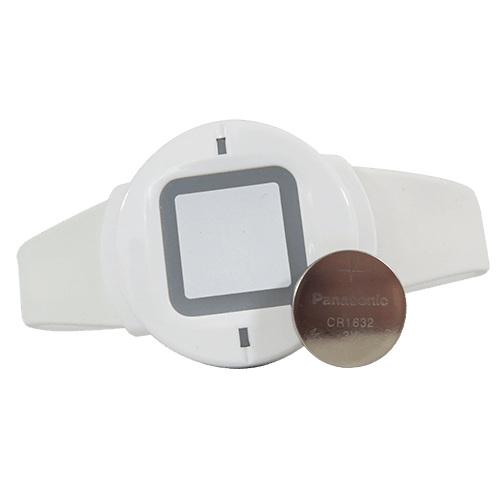

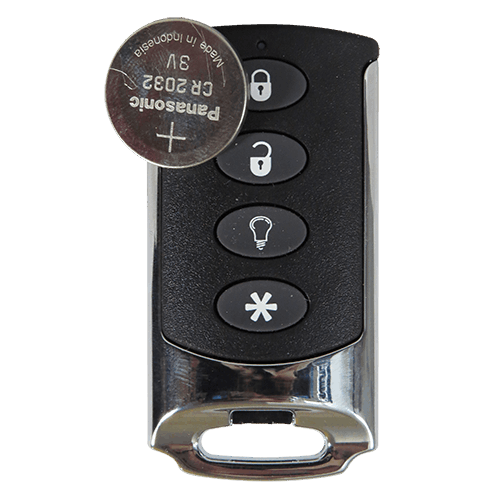

Keyfob/Panic

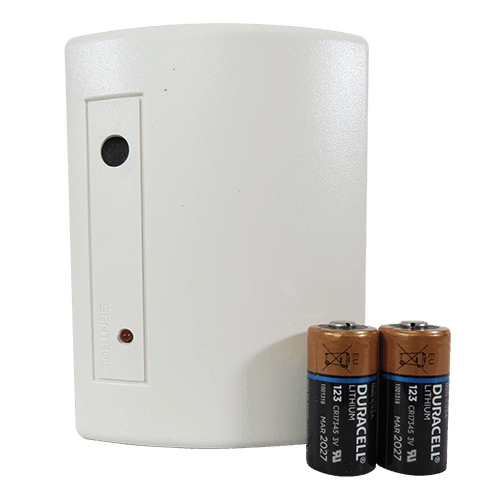

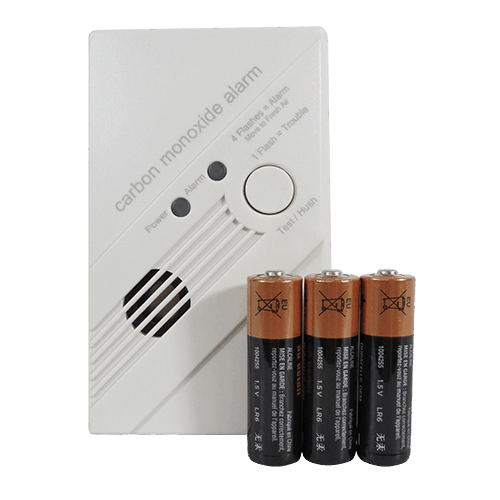

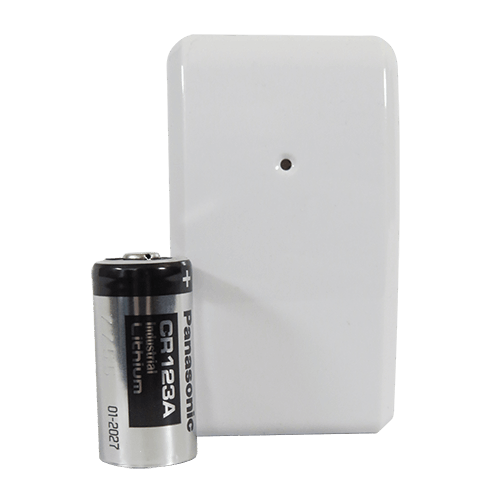

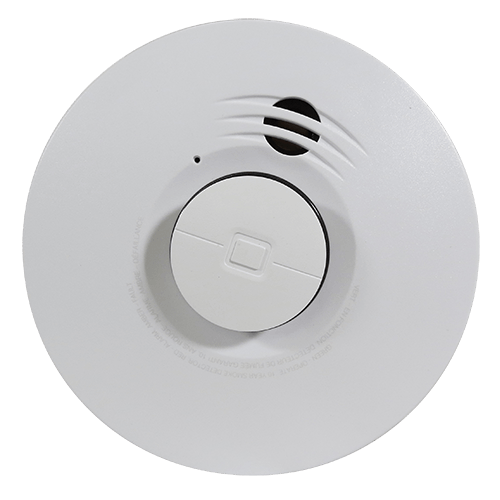

Other Sensors/Devices

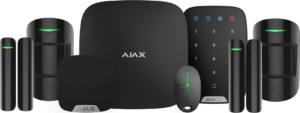

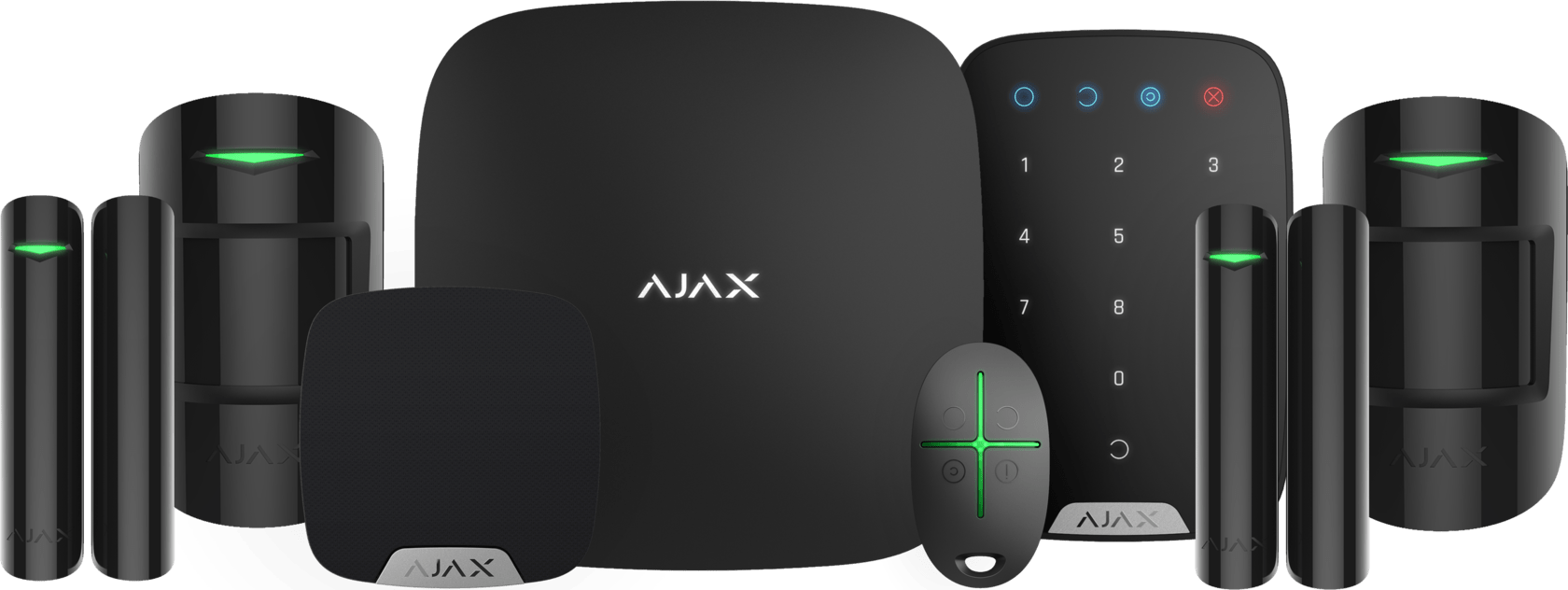

Ajax

Do not change the batteries of this product. Call to book an appointment.

Alula

Change Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a 6VDC 2.5Ah NiMH Battery

  1. Before changing the battery, unplug your device.
  2. Find the tab at the top of the device.
  3. Press in the tab and pull off the cover.
  4. Locate the battery connector wires.
  5. Remove the little white battery connector.
  6. Remove and replace battery.
  7. Place the battery connector into the terminal.
  8. Starting at the bottom, replace the cover on the base. Press in until you hear a click.
  9. Plug your device back in.

Printable Instructions .pdf

User Manual .pdf

Simon 3 (TX-E201)

Change Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a Small Flat Head Screwdriver and a 6V 1.2Ah SLA Battery

  1. Before changing the battery of your device, please unplug the transformer.
  2. Push in the tab at the top of the device and remove the outer cover.
  3. Find the tab on the inside of the slot at the top and push it up with the screwdriver.
  4. Pull apart the cover and the base.
  5. Locate the battery cover.
  6. Unscrew the cover and pull out the battery.
  7. Remove the wires from the battery terminals.
  8. Attach the wires to a new battery (6V 1.2Ah SLA), ensuring the red and black wires match up with the terminals of the same colour.
  9. Place the battery back in the slot and screw on the cover. Note the hole in the side of the cover for the wires.
  10. Replace the cover on the base. Press in until you hear a click.
  11. Replace the outer cover on the base. Press in until you hear a click.
  12. After changing the battery, plug the transformer back in and reset the clock on the device.

Change User Codes

  1. Open the cover of the Control Panel.
  2. The panel voice prompts you to Use red numbered keys to enter 4-digit ID. Enter your master access code using the red numbered keys.
  3. The panel voice prompts you to Please select from START MENU. Press the Add button on the START MENU.
  4. The panel voice prompts you to Select from MAIN MENU. Press the Access Code button on the MAIN MENU.
  5. The panel voice responds with Master Code, press again for next access code or DONE to select or CANCEL to quit. Press the access code button again to hear the next access code. When you hear the access code you wish to change press the DONE Button.
  6. Enter 4 new numbers using the red numbered keys.
  7. Close the Control Panel cover
  8. Email or Fax your Changes to the Monitoring Centre.

Printable Instructions .pdf

User Manual .pdf

Simon XT

Change Simon XT Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a 6V 1.2Ah SLA Battery

  1. Before changing the battery of your device, please unplug the transformer.
  2. Find the tabs at the top of the device.
  3. Press in the tabs and pull off the cover.
  4. Locate the battery
  5. Remove the wires from the battery terminals.
  6. Attach the wires to a new battery (6VDC 1.2Ah SLA), ensuring the red and black wires match up with the terminals of the same colour.
  7. Place the battery back in the slot.
  8. Replace the cover on the base. Press in until you hear a click.
  9. After changing the battery, plug the transformer back in and reset the clock on the device.

Change Simon XT User Codes

There are three types of access codes:

Master code: The master code is your most powerful code and can be used for all user operations including programming.

User code 1 to 8: There are eight user codes, which can be used for many user operations, but not programming, or bypassing sensors. A user code can be deleted by pressing Disarm while the code is being changed.

Duress code: The duress code, when used in place of another user code, generates a silent duress alarm that is reported to the central monitoring station. The duress code can be deleted by pressing Disarm while the code is being changed.

To enter system programming mode:

  1. Enter the System menu.
  2. Scroll until the display shows System Programming, and then press OK. The display shows Enter Code.
  3. Enter your master code, and then press OK. At this point, you are in the System Programming submenus.

To change the master code:

  1. Scroll until the display shows Access Codes, and then press OK.
  2. Scroll until the display shows Master Code, and then press OK. The current value of the code flashes.
  3. Enter a new code and then press OK.
  4. Press Status repeatedly to exit.
  5. Email or Fax your Changes to the Monitoring Centre

To change a user code:

  1. Scroll until the display shows Access Codes, and then press OK.
  2. Scroll to the user code you want to change, and then press OK. The current value of the code flashes.
  3. Enter a new code, and then press OK.
  4. Press Status repeatedly to exit.
  5. Email or Fax your Changes to the Monitoring Centre

To change the duress code:

  1. Scroll until the display shows Access Codes, and then press OK.
  2. Scroll until the display shows Duress Code, and then press OK. The current value of the code flashes.
  3. Enter a new code, and then press OK.
  4. Press Status repeatedly to exit.
  5. Email or Fax your Changes to the Monitoring Centre

Printable Instructions .pdf

User Manual .pdf

Simon XTi

Change Simon XTi Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.


You will need a Small Flat Head Screwdriver and a Simon XTi Battery


1. Before changing the battery of your device, please unplug the transformer.
2. Find the notches on the bottom corners of the device.
3. Place the screwdriver tip in the notches and pry off the cover.
4. Locate the two tabs at the top of the device. Lift both tabs at once to remove the device from the base.
5. Locate the battery.
6. Pinch the end of the wire and remove it from its connection.
7. Remove the battery.
8. Place a new battery in the device (Simon XTi Battery).
9. Connect the battery wires to their connection.
10. Replace the device on the base. Press in until you hear a click.
11. Replace the cover on the device. Press in until you hear a click.
12. After changing the battery, plug the transformer back in and reset the clock on the device.

Change Simon XTi User Codes


1. Press the Gear Icon in the bottom Right-hand Corner of the Screen to Enter “Status & Settings” screen.
2. From the Status & Settings screen, scroll down to the Programming option and press Enter.
3. Enter your access code and press OK.
4. From the Programming screen, press ACCESS CODES.
5. To add or edit an access code, press the white field next to the access code.
6. Enter the new/edited code on the numbered keypad and press SAVE.
7. Press CLOSE repeatedly to exit menus.
8. Email or Fax your Changes to the Monitoring Center

Printable Instructions .pdf

User Manual .pdf

Simon XTi-5

Change Simon XTi-5 Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a Small Flat Head Screwdriver and a Simon XTi Battery

  1. Before changing the battery of your device, please unplug the transformer.
  2. Locate the notch in the bottom corner of the device and gently pry off the cover.
  3. Locate the two tabs on the top of the device and lift them both up to remove the device from the base.
  4. Locate the battery.
  5. Pinch the end of the wire and unplug it.
  6. Remove the battery pack.
  7. Place the new battery back in the slot.
  8. Reconnect the battery wires to their connection
  9. Replace the device on its base. Press in until you hear a click.
  10. Replace the cover on the base. Press in until you hear a click.
  11. After changing the battery, plug the transformer back in and reset the clock on the device.

Change Simon XTi-5 User Codes

  1. Press the Gear Icon in the bottom Right-hand Corner of the Screen to Enter “Status & Settings” screen.
  2. From the Status & Settings screen, scroll down to the Programming option and press Enter.
  3. Enter your access code and press OK.
  4. From the Programming screen, press ACCESS CODES.
  5. To add or edit an access code, press the white field next to the access code.
  6. Enter the new/edited code on the numbered keypad and press SAVE.
  7. Press CLOSE repeatedly to exit menus.
  8. Email or Fax your Changes to the Monitoring Center

Printable Instructions .pdf

User Manual .pdf

Simon XTi-5i (Version 2)

Change Simon XTi-5i Backup Battery


Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.


You will need a Small Flat Head Screwdriver and a Simon XTi Battery


1. Before changing the battery of your device, please unplug the transformer.
2. Locate the notch in the bottom corner of the device and gently pry off the cover.
3. Locate the two tabs on the top of the device and lift them both up to remove the device from the base.
4. Locate the battery.
5. Pinch the end of the wire and unplug it.
6. Remove the battery pack.
7. Place the new battery back in the slot.
8. Reconnect the battery wires to their connection
9. Replace the device on its base. Press in until you hear a click.
10. Replace the cover on the base. Press in until you hear a click.
11. After changing the battery, plug the transformer back in and reset the clock on the device.

Change Simon XTi-5i User Codes


1. Press the Gear Icon in the bottom Right-hand Corner of the Screen to Enter “Status & Settings” screen.
2. From the Status & Settings screen, scroll down to the Programming option and press Enter.
3. Enter your access code and press OK.
4. From the Programming screen, press ACCESS CODES.
5. To add or edit an access code, press the white field next to the access code.
6. Enter the new/edited code on the numbered keypad and press SAVE.
7. Press CLOSE repeatedly to exit menus.
8. Email or Fax your Changes to the Monitoring Center

Printable Instructions .pdf

User Manual .pdf

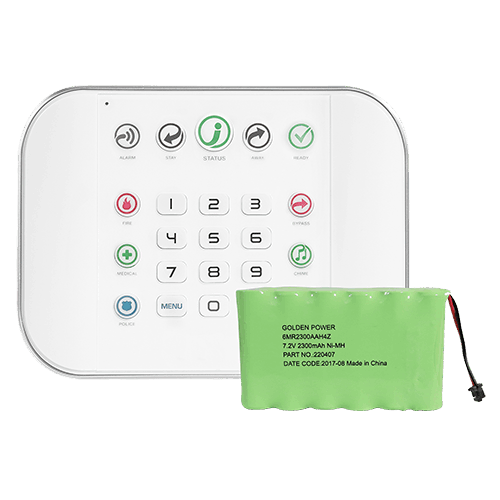

UltraSync Self Contained Hub

Change UltraSync Self Contained Hub Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small Philip’s screwdriver. There is a screw on the bottom of the device that needs to be undone before the panel can be separated from the wall or desk stand. You will also need an UltraSync Backup Battery.

1. Before changing the battery of your device, please unplug the transformer.
2. Locate the battery cover
3. Remove the screw holding the battery cover in place and remove
4. Locate the battery pack.
5. Pinch the end of the wire and remove it from its connection.
6. Remove the battery pack.
7. Place a new battery pack in the device (UltraSync Backup Battery)
8. Connect the battery wires to their connection.
9. Place the cover back on the device and screw it back in place.
10. After changing the battery, plug the transformer back in.

Change UltraSync Self Contained Hub User Codes

1. Open the UltraSync+ App on your Phone
2. Select your Site
3. Touch the 3 horizontal Bars in the Top Corner
4. Touch “USERS” from the menu (you only get this option if you are a Master User)
5. Touch the Person you would like to change or touch the + to add a new user.
6. Touch Done or Back until you are back on your main screen
7. Email or Fax your Changes to the Monitoring Center

Printable Instructions .pdf

User Manual .pdf

UltraSync Modular Hub

Change UltraSync Modular Hub Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small Philip’s screwdriver. There is a screw on the bottom of the device that needs to be undone before the panel can be separated from the wall or desk stand. You will also need an UltraSync Backup Battery.

1. Before changing the battery of your device, please unplug the transformer.
2. Locate the battery cover
3. Remove the screw holding the battery cover in place and remove
4. Locate the battery pack.
5. Pinch the end of the wire and remove it from its connection.
6. Remove the battery pack.
7. Place a new battery pack in the device (UltraSync Backup Battery)
8. Connect the battery wires to their connection.
9. Place the cover back on the device and screw it back in place.
10. After changing the battery, plug the transformer back in.

Change UltraSync Modular Hub User Codes

1. Open the UltraSync+ App on your Phone
2. Select your Site
3. Touch the 3 horizontal Bars in the Top Corner
4. Touch “USERS” from the menu (you only get this option if you are a Master User)
5. Touch the Person you would like to change or touch the + to add a new user.
6. Touch Done or Back until you are back on your main screen
7. Email or Fax your Changes to the Monitoring Center

Printable Instructions .pdf

User Manual .pdf

NetworX (NX)

Change NetworX (NX) Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a 12VDC 4Ah or 7Ah SLA Battery

1. Unlock the Cover and Open the device (The key is often left on the top of the panel.)
2. Locate the battery.
3. Remove the wires from the battery terminals.
4. Attach the wires to a new battery (12VDC 4Ah or 7Ah SLA Battery) ensuring the red and black wires match up with the terminals of the same colour.
5. Place the battery back in the case.
6. Close and lock the cover.

Change NetworX (NX) User Codes

1. Your system must be in the Disarmed state to change user codes.
2. Press [*]-[5].
3. Enter a “Master Arm/Disarm Code”. NOTE: For partitioned systems, someone changing the code of another person must have access to all or more partitions than the user being changed.
4. The ready light will flash.
5. Enter the 2-digit “user number”. You must always enter 2 digits, such as [0] – [3] for user 3, or [1] – [2] for user 12.
6. Enter the new four (4) or six (6) digit “user code”. NOTE: To delete a user code, enter [*]-[*]-[*]-[*] for a 4-digit code, or [*]-[*]-[*]-[*]-[*]-[*] for a 6-digit code.
7. The ready light will flash indicating you are back at Step 4 above. If the code is rejected, the sounder will beep 3 times.
8. If another “user code” needs to be programmed, return to Step 5.
9. Press the [#] key while the ready light is flashing to exit the User Code Programming Mode.
10. Email or Fax your Changes to the Monitoring Center

Printable Instructions .pdf

User Manual .pdf

DSC

Change DSC Backup Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a 12VDC 4Ah or 7Ah SLA Battery

1. Unlock the Cover and Open the device (The key is often left on the top of the panel.) The panel may have screws on the side instead of a lock.
2. Locate the battery.
3. Remove the wires from the battery terminals.
4. Attach the wires to a new battery (12VDC 4Ah or 7Ah SLA Battery) ensuring the red and black wires match up with the terminals of the same colour.
5. Place the battery back in the case.
6. Close and lock the cover.

Printable Instructions .pdf

User Manuals

E-Series (TX-E201)

Change E-Series (TX-E201) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a CR2032 Battery

1. Depending on the orientation of the sensor, you may have to pull up or down to remove the cover.
2. Locate the battery.
3. Gently remove the battery. You may use a small flathead screwdriver if this proves difficult.
4. Note the battery terminals (+, -). Putting Batteries in Backwards can damage the Device.
5. Place a new battery in the device (CR2032).
6. Replace the cover on the device. Press in until you hear a click.

Printable Instructions .pdf

Resolution (RE101)

Change Resolution (RE101) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a CR123A Battery

1. Remove the cover, pressing in from the side with the larger tab. Be careful not to damage the spring inside the device.
2. Locate the battery.
3. Gently remove the battery. You may use a small flathead screwdriver if this proves difficult.
4. Note the battery terminals (+, -). Putting Batteries in Backwards can damage the Device.
5. Place a new battery in the device (CR123A).
6. Starting from the side with the smaller tab, replace the cover on the device. Press in until you hear a click.

Printable Instructions .pdf

Micro Door Sensor (TX-1012-01-1)

Change Micro Door/Window Contact (TX-1012-01-1) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small flat head screwdriver and a CR2032 Battery

1. Find the notches on the top corners of the device.
2. Using the screwdriver, pry off the cover of the device. The easiest way is to insert the top of the screwdriver in the notch and twist.
3. Remove the cover.
4. The device has an inner cover, remove this by popping it off with the screwdriver as well.
5. Carefully remove the circuit board.
6. Gently remove the battery.
7. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
8. Place a new battery in the device (CR2032).
9. Place the circuit board in the device and replace the inner cover.
10. Place the cover back on the device

Printable Instructions .pdf

Nano Door Sensor (RE122)

Change Nano Door Sensor (RE122) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small flat head screwdriver and a CR1632 Battery

1. Insert the screwdriver into one of the notches on the corners of the device and pry off the cover.
2. Locate the battery.
3. Gently slide out the battery.
4. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
5. Place a new battery in the device (CR1632).
6. Replace the cover on the device, ensuring the corners match up.
7. Press in until you hear a click.

Printable Instructions .pdf

Recessed Door Contact (TX-E221)

Change Recessed Door Contact (TX-E221) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small flat head screwdriver and a CR2 Battery

1. You do not need to remove the contact from inside your door to change the batteries. Insert the screwdriver into the notch on the cover of the device and pry it off.
2. Gently remove the circuit board from the device.
3. Locate the battery. Note that the battery can only be removed on one side due to the metal that holds it in place.
4. Gently remove the battery.
5. Note the battery terminals (+, -). Putting Batteries in reversed can damage the device.
6. Place a new battery in the slot (CR2).
7. Note the indents on the inside of the device. Replace the circuit board in the device by sliding it into the indents.
8. Replace the cover on the device. Press in until you hear a click.

Printable Instructions .pdf

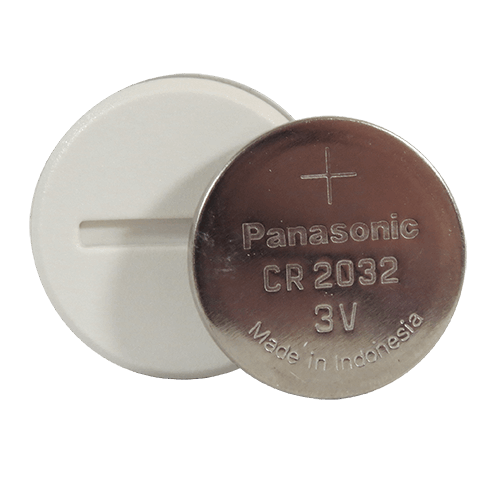

DesignLine Recessed Door Contact (TX-1510-01-1)

Change DesignLine Recessed Door Contact (TX-1510-01-1) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small flat head screwdriver and a CR2032 Battery

1. You do not need to remove the contact from inside your door to change the batteries. The cover may be screwed in. If it is, remove the screws.
2. Remove the cover by inserting a flathead screwdriver or a coin into the notch and twisting it.
3. Gently remove the circuit board from the device.
4. Locate the battery.
5. Gently remove the battery.
6. Note the battery terminals (+, -). Putting in the battery reversed may damage the device.
7. Place a new battery in the slot (CR2032).
8. Replace the circuit board in the device.
9. Screw the cover back on.

Printable Instructions .pdf

DesignLine Door Contact (TX-1010-01-1)

Change DesignLine Door Contact (TX-1010-01-1) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small flathead screwdriver and 2 x CR2032 Batteries

1. Find the notch at the top of the device.
2. Using a screwdriver, pry off the cover of the device.
3. Gently remove the batteries.
4. Note the battery terminals (+, -). Putting Batteries in Backwards can damage the Device.
5. Place new batteries in the device (2 x CR2032).
6. Replace the cover on the device. Press in until you hear a click.

Printable Instructions .pdf

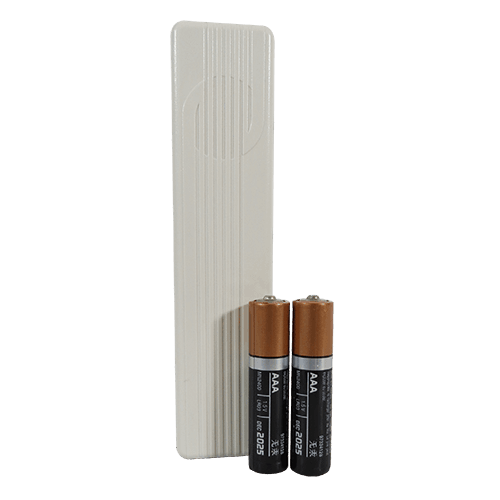

Saw (60-670-95R)

Change Saw (60-670-95R) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need 2 x AAA Batteries

1. Press in the tab and remove the cover from the base.
2. Locate the batteries.
3. Gently remove the batteries.
4. Note the battery terminals (+, -). Putting Batteries in Backwards can damage the Device.
5. Place new batteries in the device (2 x AAA).
6. Note the hook on the back end of the device.
7. Starting from the side with the hook, place the cover back on the device.
8. Press in until you hear a click.

Printable Instructions .pdf

Plunger (ION-PLUNGER)

Change Plunger (ION-PLUNGER) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a CR1620 Battery

1. Remove the plunger gently from the door before changing the battery.
2. To remove the blue lid, squeeze, twist, and pull it off.
3. Locate the battery
4. Gently slide out the battery. You may use a flathead screwdriver if this proves difficult.
5. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
6. Place a new battery in the device (CR1620).
7. Replace the lid on the device, making sure that it is seated in all the way. Then return the device to the door

Printable Instructions .pdf

Designline Overhead Door Tilt (TX-8010-01-1)

Change Designline Overhead Door Tilt (TX-8010-01-1) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small flathead screwdriver and a CR2032 Battery

1. Remove the cover by pressing the screwdriver into the slot on the bottom of the sensor and twisting it 90 degrees.
2. Locate the battery.
3. Gently pry out the battery by placing the screwdriver in the slot between the battery and the metal clip.
4. Note the battery terminals (+, -). Putting Batteries in Backwards can damage the Device.
5. Place a new battery in the device (CR2032) with the + sign facing out.
6. Replace the lid on the device, making sure the tamper switch is aligned with the plastic tamper tab. Press in until you hear a click.

Printable Instructions .pdf

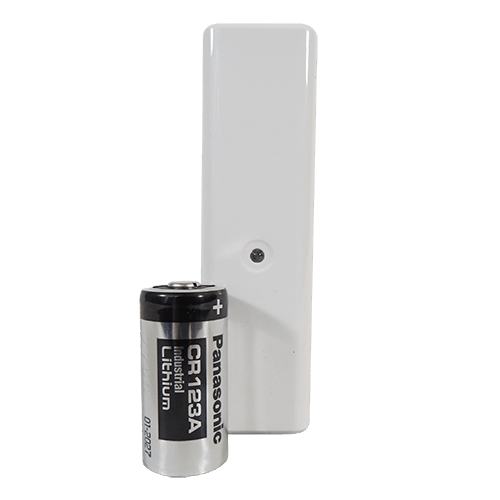

E-Series Overhead Door Tilt (TX-E401)

Change E-Series Overhead Door Tilt (TX-E401) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small Philips screwdriver (looks like an x) and a CR123A Battery

1. Locate the screw at the base of the device and unscrew.
2. Remove the cover, pulling from the side with the screw hole.
3. Gently remove the battery from the terminal.
4. Note the battery terminals (+, -). Putting Batteries in Backwards can damage the Device.
5. Place a new battery in the device (CR123A).
6. Ensuring that the hooks go in first, replace the cover on the device.
7. Screw the cover back in.

Printable Instructions .pdf

Z-Wave Deadbolt

Change Z-Wave Deadbolt Battery

Read before changing batteries! Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need an Alan or a Philip’s screwdriver depending on the screws in your device and 4 x AA Batteries

1. Unscrew the three screws on the two sides and bottom of the device.
2. Remove the cover.
3. Remove the battery pack on the inside of the device.
4. Remove the batteries.
5. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
6. Place new batteries in the battery pack (4 x AA).
7. Place the battery pack back in the device. Make sure the arrows on the top are facing toward the door.
8. Replace the cover and screw it back in.

Printable Instructions .pdf
Micro Keyfob (600-1064-95R)

Change Micro Keyfob (600-1064-95R) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small flat head screwdriver and a CR2032 Battery

1. Find the notch at the bottom corners of the device.
2. Using the screwdriver, pry off the cover of the device.
3. Remove the plastic cover and gently remove the circuit board from the rubber cover.
4. Gently remove the battery.
5. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
6. Place a new battery in the device (CR2032).
7. Place the rubber cover back on the circuit board, ensuring the corners match up, and place it back in the plastic cover.
8. Press in the two sides of the plastic cover until you hear a click.
9. Test the buttons. If the device is functional, the light will blink when you press a button, and arm or disarm your alarm system.

Printable Instructions .pdf
E-Series Keyfob (TX-E101)

Change E-Series Keyfob (TX-E101) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a key and a CR2032 Battery

1. Use the key to press in the tab at the top of the device.
2. Slide off the metal top.
3. Place the key in the notches on the top corners of the device and pry open the cover (easiest if you twist the key).
4. Remove the plastic cover and gently remove the circuit board from the rubber cover.
5. Gently remove the battery.
6. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
7. Place a new battery in the device (CR2032).
8. Place the rubber cover back on the circuit board, ensuring the corners match up, and place it back in the front half of the plastic cover.
9. Place the back half of the plastic cover back on the device and press in until you hear a click.
10. Slide the metal top back on to the device and press it in place.

Printable Instructions .pdf
Personal Panic Device (TX-4200-01-1)

Change Personal Panic Device (TX-4200-01-1) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a small Philips screwdriver (looks like an x) and a CR1632 Battery Your Panic May Look Like a Watch or a Necklace

1. Unscrew the bottom of the device.
2. Remove the bottom and the rubber wristband or Necklace Strap.
3. Gently remove the circuit board
4. Gently remove the battery from its connections.
5. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
6. Place a new battery in the device (CR1632).
7. Place the circuit board back in the plastic cover, ensuring the lights line up with the slots on the cover.
8. Replace the rubber wristband pieces or Necklace Strap and the base of the device.
9. Screw in the base.
10. Test the device by pressing the button. A light will blink to signal the device is operational.

Printable Instructions .pdf
Glass Guard (60-462-10-319.5)

Change Glass Guard (60-462-10-319.5) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a 1/2 AA Battery

1. You do not need to remove the glass guard to change the battery. Squeeze the cover at the top and pull it off of the base.
2. Locate the battery.
3. Gently remove the batteries.
4. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
5. Place a new battery in the device (1/2AA).
6. Ensuring the hook goes in first, replace the cover on the device.
7. Press in until you hear a click.

Printable Instructions .pdf
Glass Break (60-873-95)

Change Glass Break (60-873-95) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need 2 x CR123A Batteries

1. Pop off the cover, pulling from the side with the light and microphone.
2. Remove the cover and locate the batteries.
3. Gently remove the batteries.
4. Note the battery terminals (+, -). The two battery terminals have the positive sides facing each other. Putting in a battery reversed can damage the device.
5. Place new batteries in the device (2 x CR123A).
6. You will see a light blink to signal that the device is operational.
7. Replace the cover on the device.
8. Press in until you hear a click.

Printable Instructions .pdf

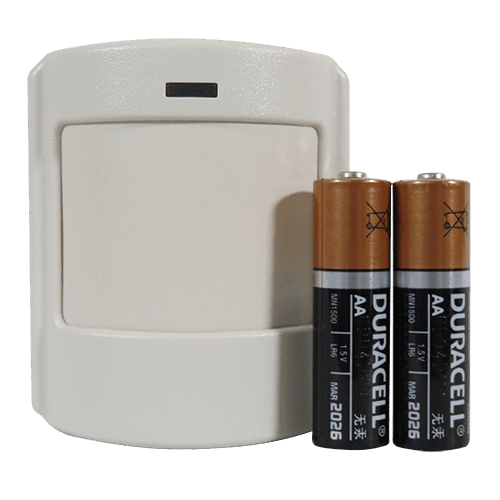

Motion (60-807-95R)

Change Motion (60-807-95R) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a 2 x AA Battery

1. Find the tab at the top of the device.
2. Press the tab in and pull the cover away from the base.
3. To remove the cover, locate the three tabs, two at the top and one on the bottom, and press all three at once to pull off the cover. Be careful not to touch the little black square on the inside of the device as this will interfere with the motion detector’s effectiveness.
4. Locate the batteries.
5. Gently remove the batteries.
6. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
7. Place new batteries in the device (2 x AA).
8. Replace the cover on the device. Press in until you hear a click.
9. Place the cover back on the base. Press in until you hear a click.
10. The light will turn on to signal that the device is operational.

Printable Instructions .pdf

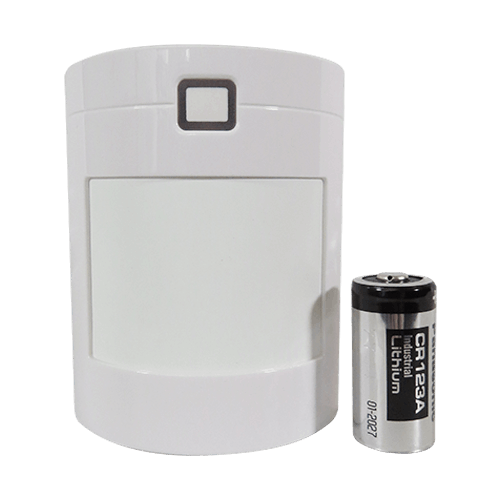

E-Series Motion (TX-E721)

Change E-Series Motion (TX-E721) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a CR123A Battery

1. Find the tab at the top of the device.
2. Press the tab in.
3. Pull the cover away from the base. Be careful not to touch the little black square on the inside of the device as this will interfere with the motion detector’s effectiveness.
4. Locate the batteries.
5. Gently remove the batteries.
6. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
7. Place a new battery in the device (CR123A).
8. Ensuring that the hooks go in first, replace the cover on the device.
9. Press in until you hear a click.

Printable Instructions .pdf

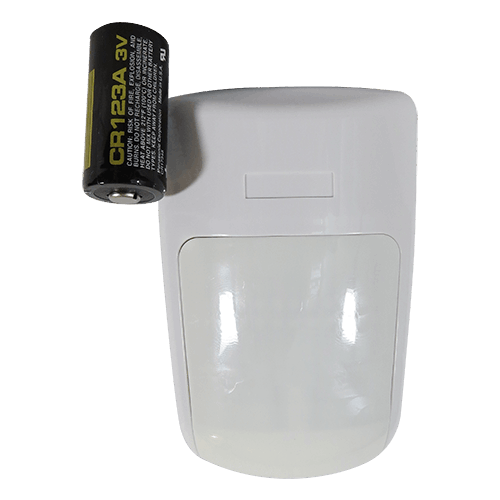

Resolution Motion (RE110P)

Change Resolution Motion (RE110P) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a CR123A Battery

1. Find the tab at the base of the device.
2. Press the tab in.
3. Pull the cover away from the base. Be careful not to touch the little black square on the inside of the device as this will interfere with the motion detector’s effectiveness.
4. Locate the batteries.
5. Gently remove the batteries.
6. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
7. Place a new battery in the device (CR123A).
8. Ensuring that the hooks go in first, replace the cover on the device.
9. Press in until you hear a click.

Printable Instructions .pdf

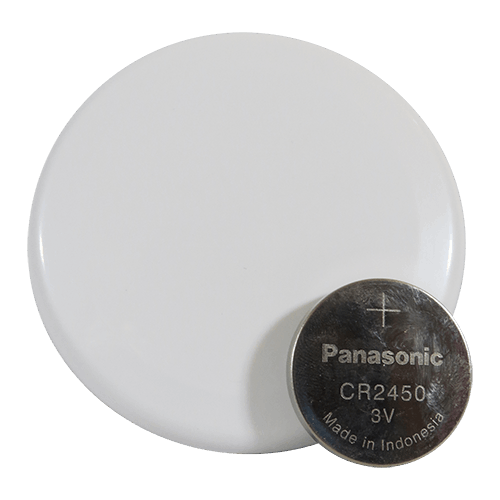

E-Series Flood/Freeze (TX-E611)

Change E-Series FloodFreeze (TX-E611) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a VERY small Philips screwdriver (shaped like an x) and a CR2450 Battery

1. The device may or may not have a cover, if there is a cover, unscrew and remove it.
2. Remove the three rubber tabs on the bottom of the device.
3. Remove the three rubber tabs on the bottom of the device.
4. Remove the cover and locate the battery.
5. Gently remove the battery from its connections. You may use the screwdriver if this is difficult.
6. Place a new battery in the device (CR2450). Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
7. Replace the cover on the device and line up the screw holes. Press in until you hear a click.
8. Place the screws in their holes and screw them in
9. Press the rubber tabs back into the holes.

Printable Instructions .pdf
Low Temperature Sensor (60-744-95R)

Change Low Temperature Sensor (60-744-95R) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need 2 x AAA Batteries

1. Press in the tab and remove the cover from the base.
2. Locate the batteries.
3. Gently remove the batteries.
4. Note the battery terminals (+, -). Putting Batteries in Backwards can damage the Device.
5. Place new batteries in the device (2 x AAA).
6. Note the hook on the back end of the device.
7. Starting from the side with the hook, place the cover back on the device.
8. Press in until you hear a click.

Printable Instructions .pdf
Carbon Monoxide Detector (600-6520-95)

Change Carbon Monoxide Detector (600-6520-95) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need 3 x AA Batteries

1. Slide the device sideways off the base.
2. Locate the batteries.
3. Gently remove the batteries.
4. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
5. Place new batteries in the device (3 x AA). The device will beep to signal it is operational.
6. Slide the device back on to the base.

Printable Instructions .pdf
Firefighter (SLX-AD-T3)

Change Firefighter (SLX-AD-T3) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a CR123A Battery

1. The firefighter will be mounted adjacent to your smoke detector. Find the tab at the base of the device.
2. Press the tab in.
3. Pull the cover away from the base.
4. Locate the battery.
5. Gently remove the battery from its connections.
6. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
7. Place a new battery in the device (CR123A).
8. Ensuring that the hooks go in first, replace the cover on the device.
9. Press in until you hear a click.

Printable Instructions .pdf
Heat Sensor (HDX-135, HDX-200, HDX-135Z)

Change Heat Sensor (HDX-135, HDX-200, HDX-135Z) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a CR123A Battery

1. Twist the cover counterclockwise and remove it.
2. Locate the battery.
3. Gently remove the battery from its connections.
4. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
5. Place a new battery in the device (CR123A).
6. Place the cover back on the base.
7. Twist clockwise until you hear a click.

Printable Instructions .pdf
Smoke Detector (TX-6010-01-1)

Change Smoke Detector (TX-6010-01-1) Battery

Read before changing batteries! Before changing batteries, please call the monitoring station and ask them to put your system on test. For this, you will need your account information. Please note that putting your batteries in backwards may damage the device. Remember to note the battery terminals.

You will need a 2 x CR123A Batteries

1. Twist the cover counterclockwise and remove it.
2. Slide off the cover of the battery slot. (The compartment marked with the warning sign)
3. Gently remove the batteries.
4. Note the battery terminals (+, -). Putting in a battery reversed can damage the device.
5. Place new batteries in the device (2 x CR123A).
6. Replace the cover on the battery slot.
7. Note the three notches on circumference of the device and the small node at the top.
8. Line the node up with the arrow on the inside of the base.
9. Press the cover onto the base and twist clockwise until you hear a click.

Printable Instructions .pdf
Smoke/Freeze Detector (SDX-135Z)

Do not change the batteries of this product. If the batteries have expired you must replace the smoke detector.

Contact us

Serving All Of Southern Alberta

OPENING HOURS

Find us on Social media

Facebook Twitter Youtube Instagram

SUBSCRIBE

Join Our Mailing List For The Latest Updates to Products and Services
